Antenna feed system

Name: Friendly
Rating: 5 (11 reviews)

Omnidirectional Antenna

Model	Gain	Frequency band	Band width
А0 VHF	2,15 dBi	VHF	147 – 174 MHz
А5 VHF	4,5 dBi	VHF	144 – 174 MHz
А7 VHF	7,8 dBi	VHF	147 – 174 МГц
А0 UHF	2,15 dBi	UHF	400 - 480 MHz
А5 UHF	5,5 dBi	UHF	402 – 470 MHz

Gain Antenna

Model	Gain	Frequency band	Band width
Y3 VHFg	5,5 dBi	VHF	144 - 174 MHz
Y5 VHFg	10,15 dBi	VHF	144 – 174 MHz
Y9 VHFg	13,65 dBi	VHF	150 – 170 MHz
Y3 VHF	7,15 dBi	VHF	140 – 179 MHz
Y5 VHF	10,15 dBi	VHF	143 – 178 MHz
Y4 UHF	8,15 dBi	UHF	390 – 490 MHz
Y6 UHF	11,15 dBi	UHF	400 – 475 MHz
Y9 UHF	13,15 dBi	UHF	395 – 470 MHz

Dipole Antenna

Model	Gain	Frequency band	Band width
D1 VHF	2,15 dBi	VHF	136 - 174 MHz
D2 VHF	5,15 dBi	VHF	136 - 174 MHz
D1 UHF	2.15 dBi	UHF	400 - 490 MHz
D4 VHF	8,15 dBi	VHF	136 - 174 MHz
D2 UHF	5.15	UHF	400 - 490 MHz
DM4 UHF	11.15 dBi	UHF	400 - 490 MHz
D2 VHF I	5,15 dBi	VHF	136 - 174 MHz
DН2 VHF	8,15 dBi	VHF	136 - 174 MHz
DP1 VHF	5,15 dBi	VHF	150 – 174 MHz

Сoaxial Сable

Model	Attenuation	Cladding external diameter	Central conductor
RG-58 С/U	150 MHz – 20,6 dB 450 MHz – 39 dB	4,95 mm	tinned copper
RG-213 С/U	150 MHz – 6,3 dB 450 MHz – 12,1 dB	10,3 mm	Pure copper
RG-214	100 MHz – 6,9 dB 400 MHz – 15 dB	10,8 mm	Sliver-plated copper
10D-FB PVC	150 MHz – 3,7 dB 450 MHz – 7,1 dB	13,1 mm	Pure copper
10D-FB PЕ	150 MHz – 3,7 dB 450 MHz – 7,1 dB	13,1 mm	Pure copper

Feeder Cables

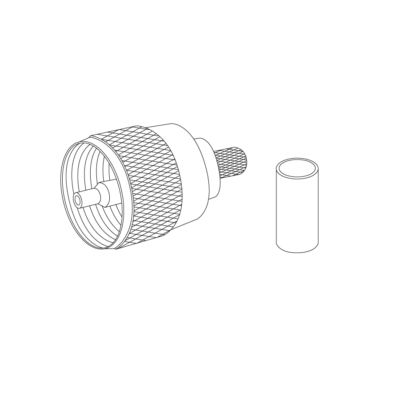

Connecter for Cable RG-58

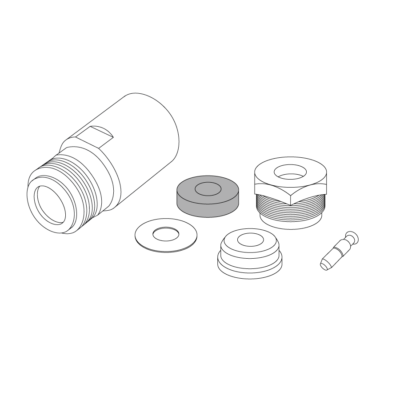

Connecter for Cable RG-213, RG-214

Connecter for Cable 10D-FB

Connecter for Cable LCF 12-50J

Connecter for Cable LCF 78-50J

Coaxial Lightning Protection

Model	Description
IS-50NX-C2	Coaxial lighning protection, 10-1000 MHz, N (female) – N (female)

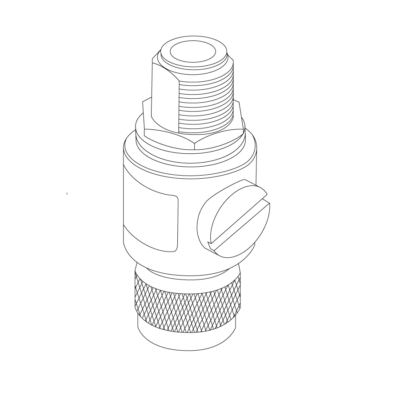

P8AX25-N/FF	Coaxial lightning protection, DC – 4 GHz, N (female) – N (female), portative lightning protector

Lightning Protection of Ethernet

Model	Description
CRMJ8-POE-C5	Lighting protection of Ethernet, >100 MHz, RJ-45

Grounding Sets

Model	Description

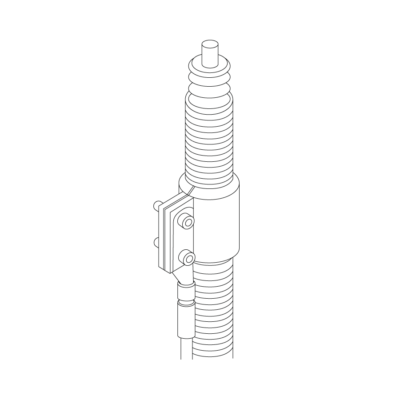

HSE	Grounding set for coaxial cable

Small-Size Duplexers

Model	Band width	TX/RX	Losses	Isolation
MDF1-6VM	148 – 149 MHz 171 – 173 MHz	24 MHz	≤0,9 dB	≥75 dB
MDF1-6VL4,5/6	138 – 156 MHz	4.5 – 6 MHz	≤1.3 dB	≥80 dB
MDF1-6VL8/10	138 – 156 MHz	8 – 10 MHz	≤1.3 dB	≥80 dB
MDF1-6VH4,5/6	152 – 174 MHz	4.5 – 6 MHz	≤1.3 dB	≥80 dB
MDF1-6VH8/10	152 – 172 MHz	8 – 10 MHz	≤1,3 dB	≥80 dB
MDF1-6VH-15	147 – 168 MHz	10 – 15 MHz	≤1.3 dB	≥80 dB
MDF1-6UL8/13	400 – 430 MHz	8 – 13 MHz	≤1.3 dB	≥75 dB
MDF1-6UM8/13	440 – 470 MHz	8 – 13 MHz	≤1,3 dB	≥75 dB
MDF1-6UH5/8	440 – 470 MHz	8 – 13 MHz	≤1.3 dB	≥75 dB
MDF1-6UL5/8	400 – 450 МHz	5 – 8 MHz	≤1.3 dB	≥85 dB
MDF1-6VL6/8	138 – 156 MHz	6 – 8 MHz	≤1.3 dB	≥80 dB

Band-Rejective Duplexers

Model	Band width	TX/RX	Losses	Isolation
DPRE5-VHF-S	144 – 170 MHz	0.6 MHz	≤2 dB	≥90 dB
DPRE5-2M-S	144 – 146 MHz	0.6 – 2 MHz	≤2 dB	≥90 dB
DPR4-6V	140-174 MHz	0.6 MHz	≤2 dB	≥80 dB
DPR4-4V	140-174 MHz	0.8 MHz	≤1.5 dB	≥75 dB
DPR5-4V	140-174 MHz	0.6 MHz	≤1.5 dB	≥75 dB
DPR5-6V	140-174 MHz	0.4 MHz	≤2 dB	≥80 dB
DPR8-4U	400 – 490 MHz	1.5 MHz	≤1.5 dB	≥75 dB
DPR4-6U	400 - 900 MHz	1.6 MHz	≤1.5 dB	≥90 dB
DPR4-4U	400 – 490 MHz	2 MHz	≤1.5 dB	≥75 dB

Без категории

Title	Description

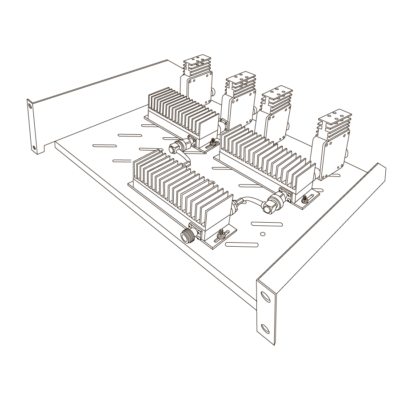

TX Equipment	Combiner types: resonating and hybrid
RX Equipment	Distribution panels, preselectors, amplifiers
