CODAN HF Solutions

CODAN HF Solutions include two main delivery sets: mobile and base.
Each of the sets includes Envoy X2 22210 RF Unit, that is a basic component. It may be compatible with either Envoy 2221 or Envoy 2220 Handset (it is included into a mobile set) as well as with Envoy 2230 Desk Console (it is included into a base sete).

Key characteristics of Envoy X2 22210 RF Unit

Software defined electronics architecture

IP based control interface

1000 channels, 1.6 to 30 MHz, 10 scan groups

Simultaneous scanning of multiple scan groups

Secure channel programming (with voice encryptions options)

Selectable TX power level

Ethernet/USB connectivity

Codan Selcall Including Diagnostic, Phone and Emergency Call types

MIL-STD-810G for Drop, Dust, Shock, Vibration

Physical Characteristics

Output power max. 125 W

Power supply 12 V

Modulation USB/LSB/AM

Operational Characteristics

Possibility to scan max. 100 channels

15-contact GP-port – full accessories support

Easitalk™ noise cancelling

6-contact connector - interface of RX Unit GPS, serial PC interface, interface of the data transfer modem

Аксессуары

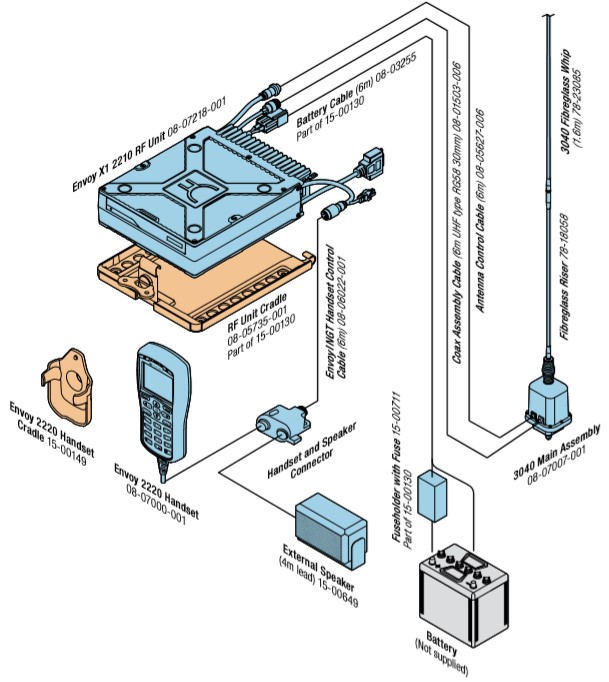

Envoy X1 Mobile Configuration

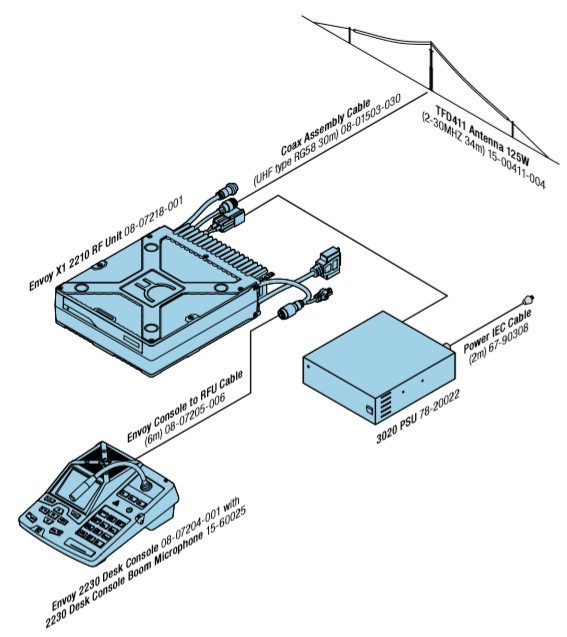

Base Station Configuration ENVOY X2
