Datasheet
DP4401ЕХ

Explosion-proof portable radio DP4401ЕХ

DP4401EX is a full-functional explosion-proof portable radio.  DP4401EX is designed especially for creating secure and safe communication within explosive areas and it combines main advantages of professional radio of MOTOTRBO range, such as integrated voice and data transfer, improved quality of the sound signal, increased battery resource, set-in scrambling, which provides data protection.

DP4401EX series of radios comply with high standards and belongs to the most secure group of ATEX. The devices are developed in accordance with the IP67 safety range and they are designed to operate in tough conditions.

Set-in Glonass/GPS receiver allows to improve employees’ productivity and increase their safety by providing constant monitoring of resources and tracking of mobile groups.

Radios of DP4000ЕX series and additional accessories of ATEX standard allow to organize a reliable and efficient communication system as well as to provide the needed safety level for the employees in extremal working conditions.

Key features

Full functionality
32 channels
No keyboard, no display
Configured power levels (1W)
ATEX certification for operation in explosive environment
MIL STD 810D, E, F, G
GLONASS, GPS
IP67

Physical characteristics

Dimensions 138,5mm x 56,7mm x 37,8mm
Weight 455,5 г
3 programmble buttons
Three color light indicator
Emergency call button

Operational characteristics

Frequency band 146-174 MHz
403-470 MHz
Power 1-5 W (146-174 MHz)
1-4 W (403-450 MHz)
Band width 12,5 / 20 / 25 kHz
Amount of channels 32
Average battery life Analogue mode: 16 h Digital mode: 19 h

Main functions

Operation in analogue and digital mode
Individual, group, general and emergency calls
Automatic volume control, noise cancelling, "whisper" mode
Basic and improved confidentiality
Data receiving and transfer
Расширенные возможности за счет функциональных плат и приложений
Operation in TRBOnet Enterprise, TRBOnet Watch
"Friend-foe" function (RAS- access key for repeater)

Environmental requirements

Dust - / waterproof IP67
Severe temperature and humidity changes MIL STD 810D, E, F, G
Temperature - 30°С / + 55°С - operational
- 40°С / + 85°С - storage

Standard delivery package

Radio
Antenna
Battery: LI-Ion 2075 mAh
Clip for wearing

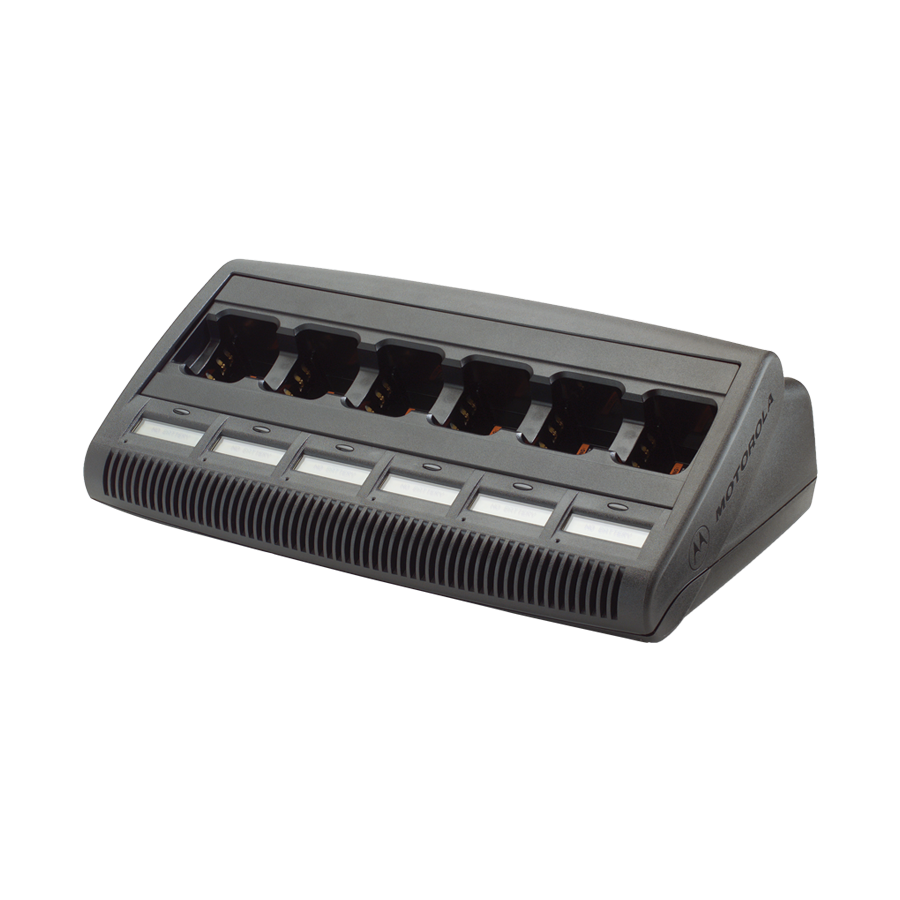

Charger
Manual in Russian
