DP3661E

Portable Radio DP3661E

DP3661E is a compact and full-functional portable radio .  This model combines all advantages of professional radios of MOTOTRBO rang, such as increased coverage area, advanced energy safe technology providing long battery operation time, the best in the class audio system, integrated voice and data transfer.

Set-in Glonass/GPS receiver allows to improve employees’ productivity and increase their safety by providing constant monitoring of resources and tracking of mobile groups.

Due to full-color display and cut DTMF-keyboard DP3661E provides users with advanced functional: convenient access to the information regarding radio condition and text message exchange.

DP3661E radios meet IP68 standard and are tested under military standards for use in tough conditions.

DP3000E series is designed especially for mobile specialists, small size and the range of additional accessories, including Bluetooth®, provide more possibilities for connection and operation.

Key features

Full-functional radio
1000 channels
Compact size
Programmable power levels
(1-5 W, 1-4 W)
Cut DTMF-keyboard, 5-lines color display
Glonass, GPS
IP68
Bluetooth
Wi-Fi

Physical characteristics

Size 100mm х 55mm х 36mm
Weight

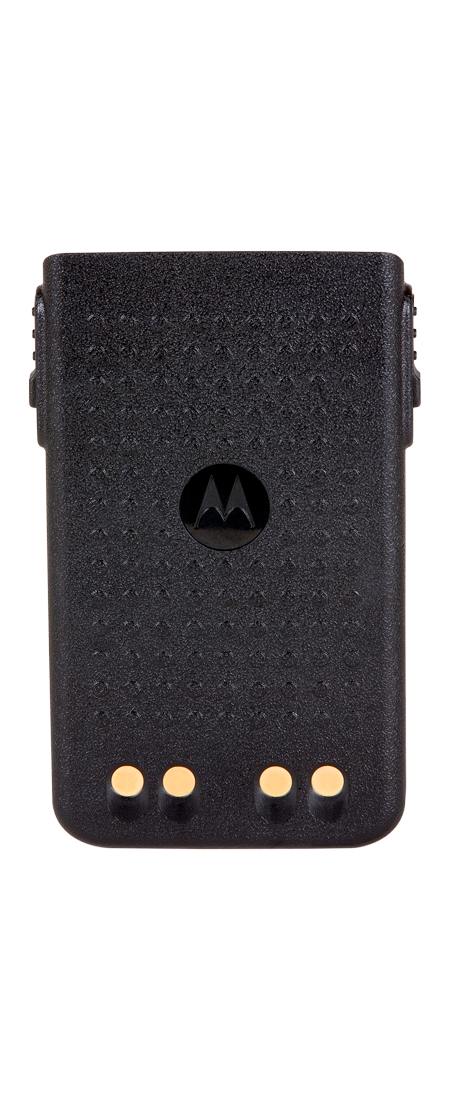

With standard Li-Ion battery 1700 mAh, PMNN4400

290 g
4 configuration buttons
Three-color light indicator
Emergency call button

Operational characteristics

Frequency band 146-174 MHz
403-450 MHz
Power 1-5 W (146-174 MHz)
1-4 W (403-450 MHz)
Channel separation 12,5 / 20 / 25 kHz
Quantity of channels 1000
Average battery lifetime

Standard Li-Ion battery of 1700 mAh at operation mode 5/5/90, high power on and Glonass/GPS off

Analogue mode: 8 h
Digital mode: 12.3 h

Main functions

Operation in analogue and digital networks under TDMA technologies of ETSI-TS102 361-1,-2,-3 standard
Automatic volume control, noise canceling, "whisper" mode
Individual, group, general and emergency calls
Basic and improved configuration
Receving-transmission of data
Increased capabilities due to functional boards and applications
Operating in dispatch complexes TRBOnet Enterprise, TRBOnet Watch
"Friend-foe" function (RAS-repeater access key)

Environmental requirements

Dust- / Waterproof P68
Temperature - 30°С / +60°С - operating
- 40°С / + 85°С - storage

Standard package

Radio
Antenna
Li-Ion 1700 mAh battery
Clip for wearing
Markers
Operating manual
